Description

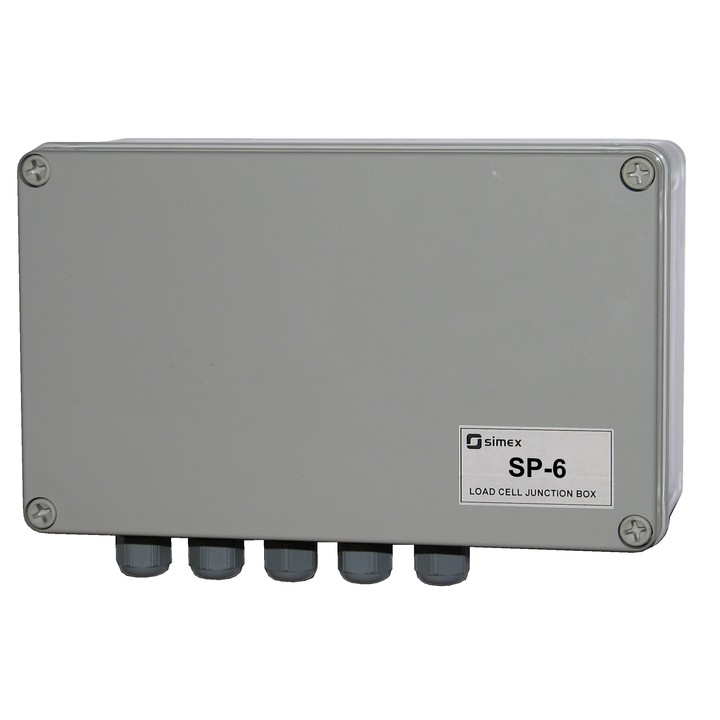

Load cell junction box for weight meters allows for quick and easy connection from 2 up to 6 load cells in multisensor systems, such as tank scales. The large enclosure of the junction box lets you put excess cable of the load cells inside the box (the cable length shortening is not recommended).
Specification
| Number of inputs |
4
6
|
| Measuring element |
tensometer load cells 4-wire or 6-wire; programmable sensitivity selectable up to 2 mV/V or 4 mV/V; load cells power supply: 4,6 V ± 10%, Imax ~ 60 mA
|
| Operating temperature |
-10...+60°C
|
| Protection class |
IP 65
|
| Case material |
ABS
|
| Mounting |
wall
|
| Case dimensions |
230 x 140 x 95 mm
|
Files
| Data sheet |
