LMK 458

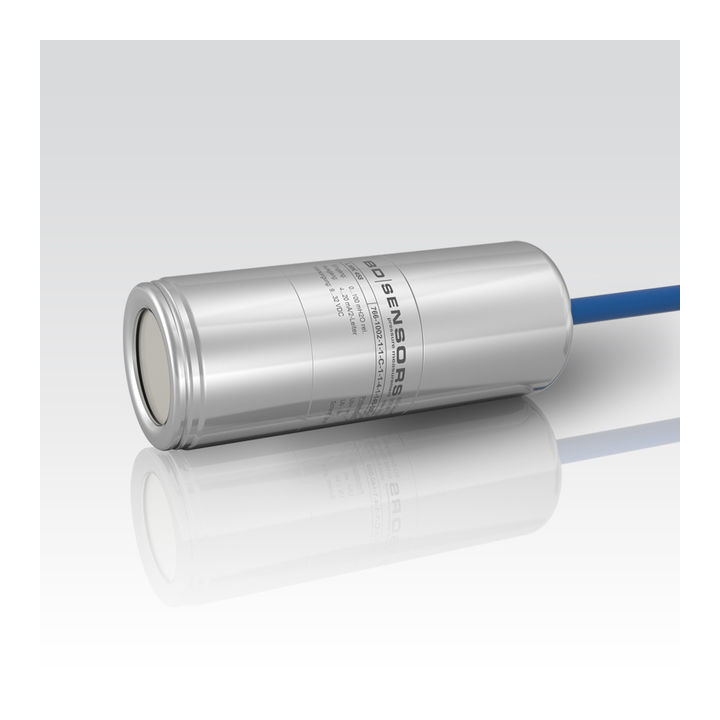

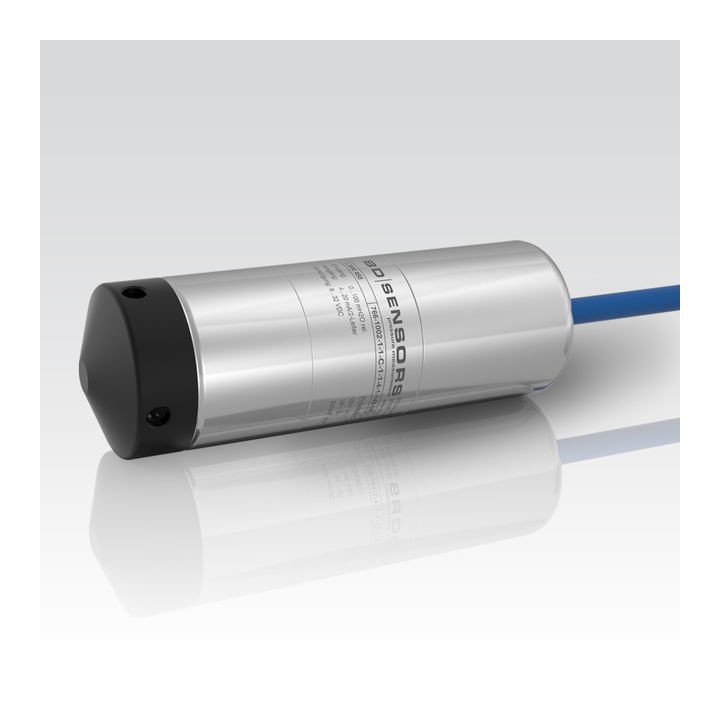

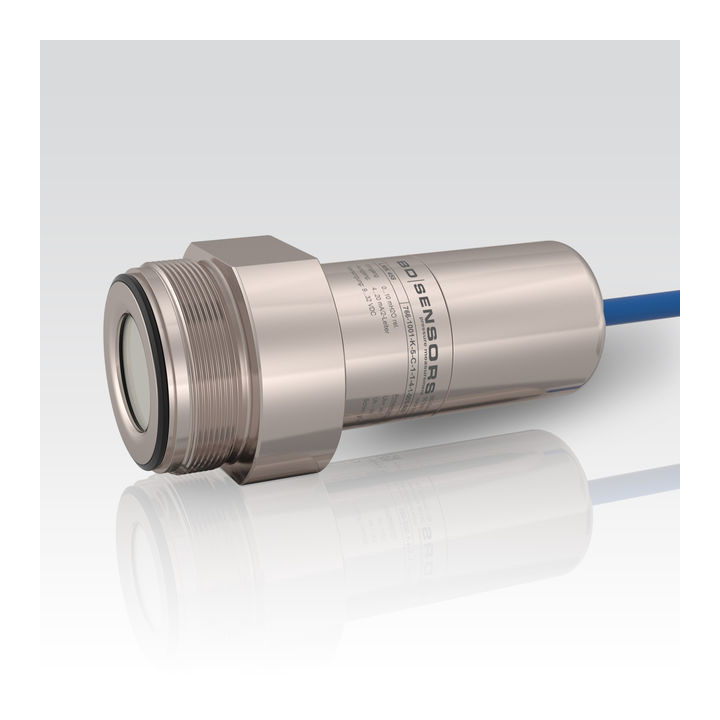

submersible probe LMK 458
Code: LMK 458
  • ceramic sensor
  • nominal range: 0...0,4 mH2O up to 0...200 mH2O
  • accuracy: 0.1 % / 0.25 % / 0,35 % FSO
  • pressure port CuNiFe (sea water resistant)
  • high overpressure resistance
  • excellent accuracy
  • diaphragm AI2O3 99.9 %
  • shipping approvals: LR (Lloyd´s Register), DNV (Det Norske Veritas), GL (Germanischer Lloyd), ABS (American Bureau of Shipping), Bureau Veritas (BV), CCS (China Classification Society)
  • IS-version
  • areas of application: marine, shipbbuilding, offshore
Choose a product
Ask about product
+48 58 762 07 77
Description

The hydrostatic probe LMK 458 has been developed for measuring level in service and storage tanks and is as a consequence certificated for shipbuilding and offshore applications.

A permissible operating temperature of up to 125°C and the possibility to use the device in intrinsic safe areas enable to measure the pressure of various fluids under extreme conditions. The basis for the LMK 458 is a capacitive ceramic sensor element designed by BD|SENSORS, which offers a high overload resistance and medium compatibility.

Specification
Measurement range
0...0,4 mH2O up to 0...200 mH2O
Output type
4...20 mA, 2-wire
Electrical connection
cable outlet with TPE-U cable
Probe diameter
Ø39,5 mm
Diaphragm
ceramics Al2O3 (99.9 %)
ceramics Al2O3 (96 %)
Power supply
9…32V DC
14…28V DC
Accuracy
±0,1%
±0,35%
±0,25%
Medium temperature
-25...+125°C
Protection class
IP 68
Case material
stainless steel
CuNi10Fe1Mn
Case dimensions
Ø39,5 x 124 mm
Files
Data sheet
Manual
Manual IS version
Declaration of conformity
