CCE-26.600G

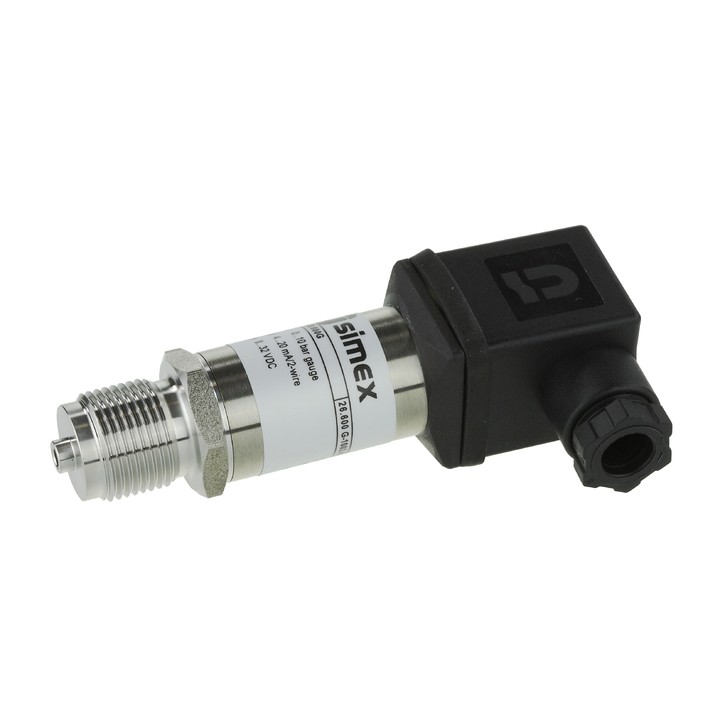

Pressure transmitter CCE-26.600G
Code: CCE-26.600G
  • ceramic sensor
  • nominal pressure: 0...1 bar up to 0...400 bar
  • accuracy: 0.5% FSO
  • oil and grease free version
  • different electrical and mechanical connections
  • areas of application: mechanical and plant engineering, HVAC, utility vehicles / mobile hydraulics
Choose a product
Ask about product
+48 58 762 07 77
Description

CCE-26.600G pressure transmitters can be used in any industrial solutions. Equipped with a ceramic sensor, they guarantee a measurement accuracy of 0.5% in accordance with the IEC 60770 standard. The nominal pressure range for the CCE-26.600G is 1...400 bar.

Specification
Measurement range
0...1 bar up to 0...400 bar
-1...0 bar
Output type
0...5V, 3-wire
4...20 mA, 2-wire
10…90% Vs, 3-wire ratiometric
0...10V, 3-wire
0...20 mA, 3-wire
1...5V, 3-wire
Process connection
G 1/2
G 1/4
G 1/8
1/4 NPT
M12x1,5
M20x1,5
Electrical connection
connector M12x1
cable outlet with PVC cable
ISO 4400
Diaphragm
ceramics Al2O3 (96 %)
Power supply
2.7...5V DC (3-wire ratiometric)
8...32V DC
14...30V DC
Accuracy
±0,5%
±1%
Operating temperature
-25...+85°C
Medium temperature
-25...+125°C
Protection class
IP 65
IP 67
Case material
stainless steel
